- Size: 1/2″-36″ (15NB – 900NB)
- Class: 150#-2500#
- CS / SS /Alloys / Monel / Hastalloys / Fabricated / Bronze MOC
- Solid / Flexible Wedge / Parallel / Double Disc
- Stem Protector, Linkage, Chain Pulley and Bypass arrangement on request
- Specially: Bellow Sealed, Cryogenic and High Temp
- Metal to Metal and Metal to soft Seat
- Manual operated / Gear box / Electrical, Pneumatic operated
Manual Valves

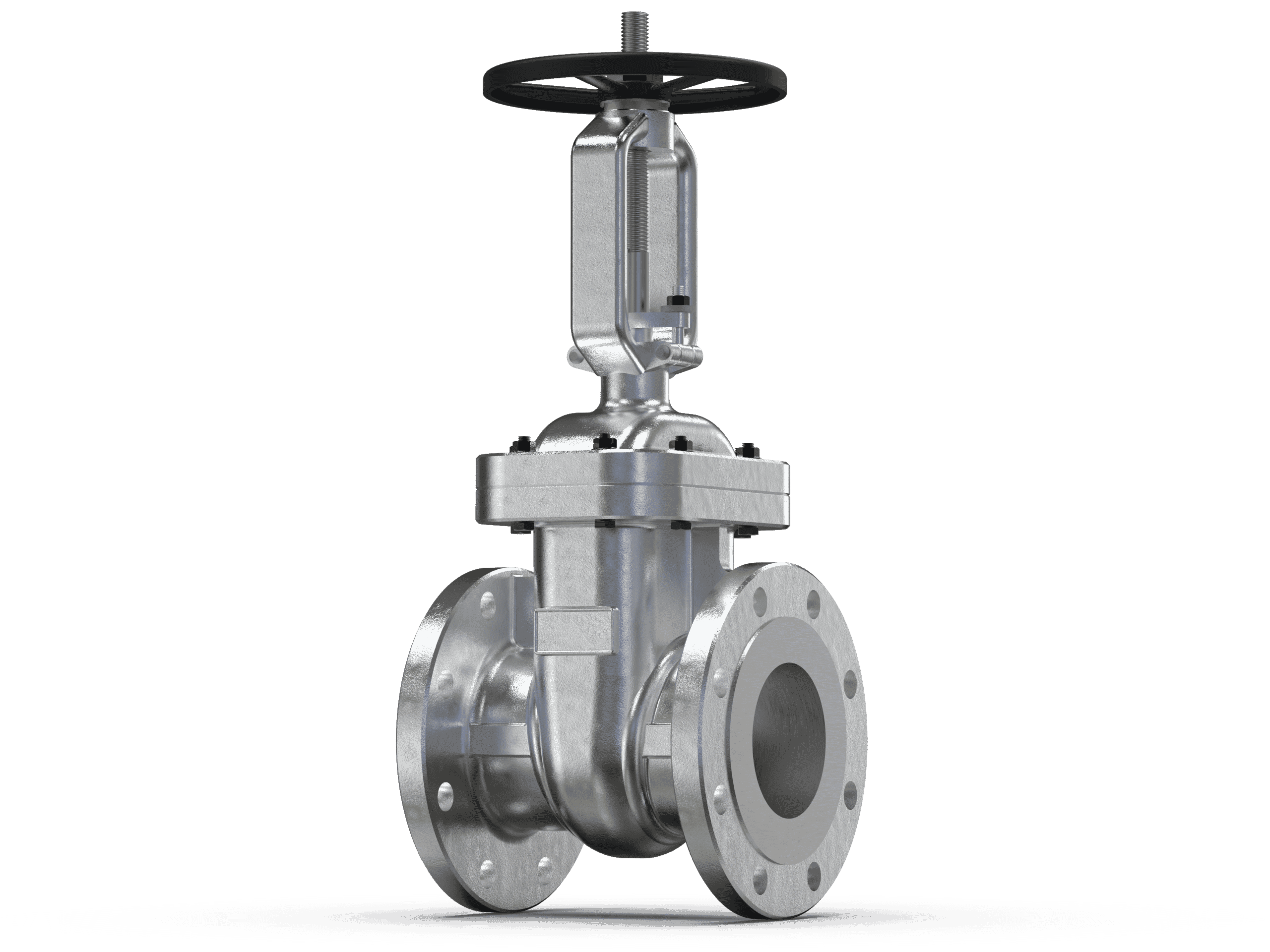

GATE VALVES
(BOLTED BONNET & PRESSURE SEAL BONNET)
- Design : ASME B16.34 / API 600 / API 602 / API 603 / IS 14846
- Face to Face : ASME B16.10 / DIN
- End to End: SW/BW Type / Flanged End / RTJ
- Pressure -Temperature Rating : ASTM B 16.34
- Screwed End Dimension : ASTM B 1.20.1
- BW End: ASME B16.25
- Test : API 598
- Fire Safe : NACE MR-01-75
- Special : ASME B16.5 / B16.47/DIN / BS / IS / JIS

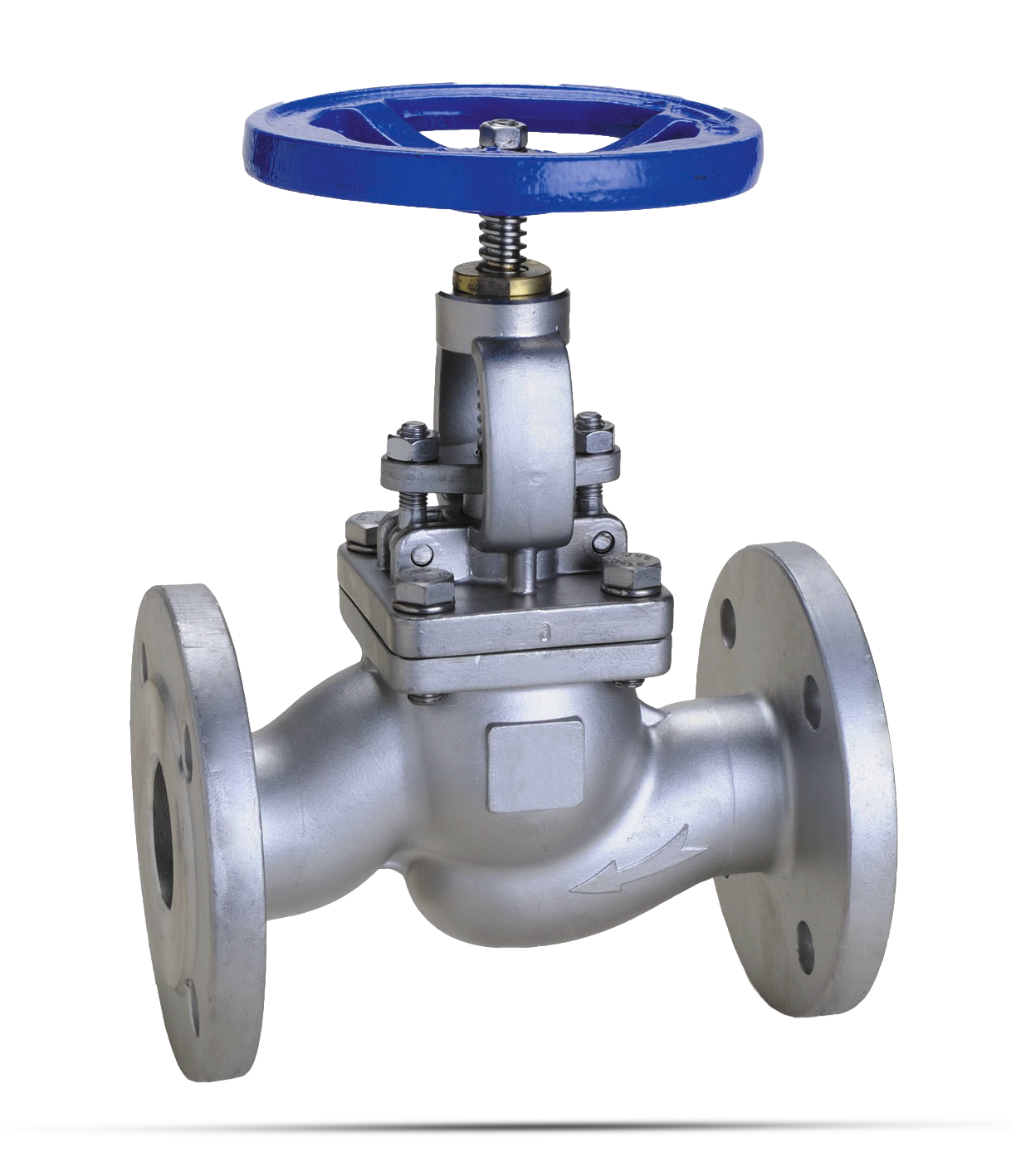

GLOBE VALVES
- Size: 1/2″-20″ (15NB – 500NB)
- Class: 150#-2500#
- CS / SS / Alloys / Monel / Hastalloys Steel / Bronze MOC
- Parabolic , Regulating, Throttle and Guid Type Plug
- Staight “T” Type, “Y” Type, Angle Type.
- Speciality : Below Sealed, Cryogenic, High Temp and with pressure balancing arrangement.
- Metal to Metal and Metal to soft seat
- Manual Operated / Gear Box / Pneumatic / Electrical Actuator
- Design : ASME B16.34 / BS 1873
- Face to Face : ASME B16.10 / DIN IS
- End to End: BW Type / Flanged End / RTJ
- Test : API 598 / BS 6755
- Pressure -Temperature Rating: ASTM B 16.34
- Screwed End Dimension : ASTM B 1.20.1
- BW End: ASME B16.25
- Fire Safe: NACE MR-01-75 / 0103

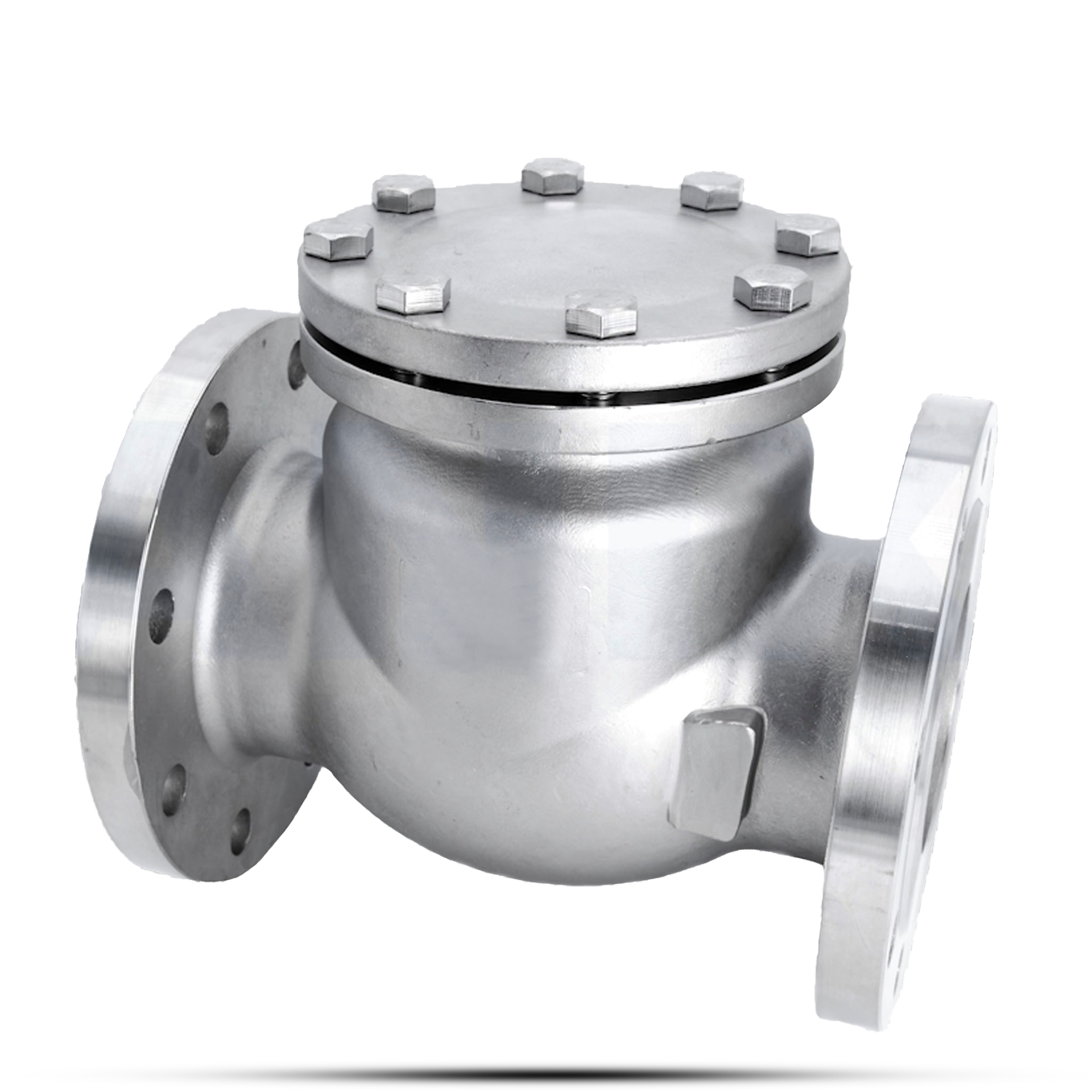

CHECK VALVES
(BOLTED COVER & PRESSURE SEAL COVER)
- Size : 1/2″-36″ (15NB – 900NB)
- Type : Bolted Cover, Pressure seal cover
- Class : 150#-2500#
- CS / SS / Alloys / Monel / Hastalloys / Bronze MOC
- Self Operated / Dash Pot / Counter Weight
- Non Slam arrangement on request
- Wafer Type / Ball Type / Piston Type / Spring Loaded
- Metal to Metal and Metal to soft seat
- Rubber Lining on request
- Flange Drilling : ASME B16.34 / BS 1868
- Face to Face : ASME B16.10 / DIN IS / BS
- End to End: BW Type / Flanged End / RTJ
- Screwed End Dimension : ASTM B 1.20.1
- Pressure -Temperature Rating: ASTM B 16.34
- BW End: ASME B16.25
- Test: API 598 / BS 6755
- Special: NACE MR-01-75 / 0103

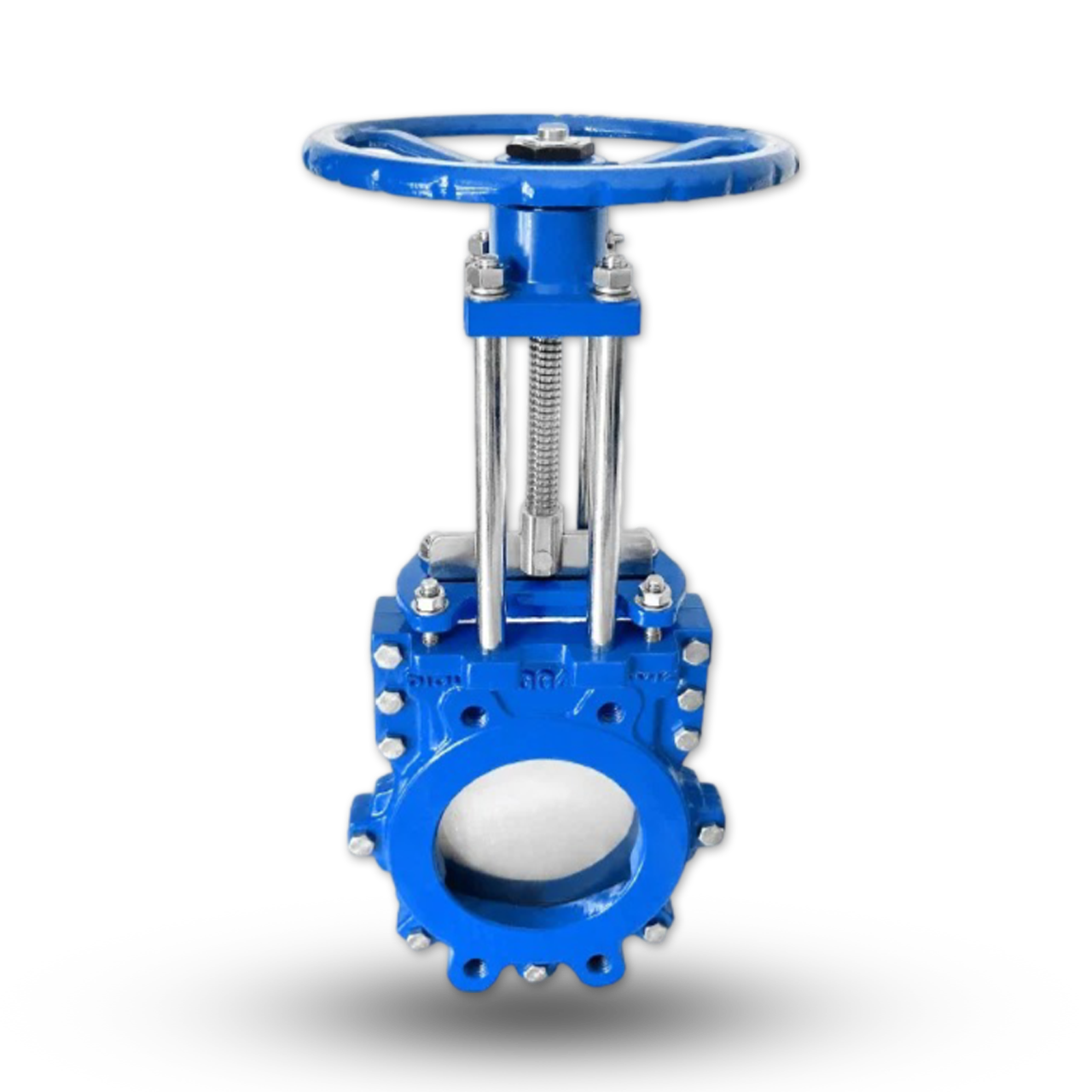

Knife Gate Valve
- Size: 1/2″-16″ (15mm – 400mm)
- Class: 150#-300#-600#
- Two Way / Three Way
- CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE / Hand Lever / Gear Box
- Hydraulic / Electrical Actuator / Jacketing / Inverting with Spring Load
- PTFE Sleeve body
- Insolation and Reversing
- Handened Sleeve and Plug
- Design : ASME B16.34 / API 599 / BS 5158 / IS 10459.
- Face to Face : ASME B16.10
- End to End: Flanged / Skrewed / BW.
- End Flang : ASME B16.5 / DIN / BS / IS
- BW End: ASME B16.25
- Test : API 598 / BS 6755

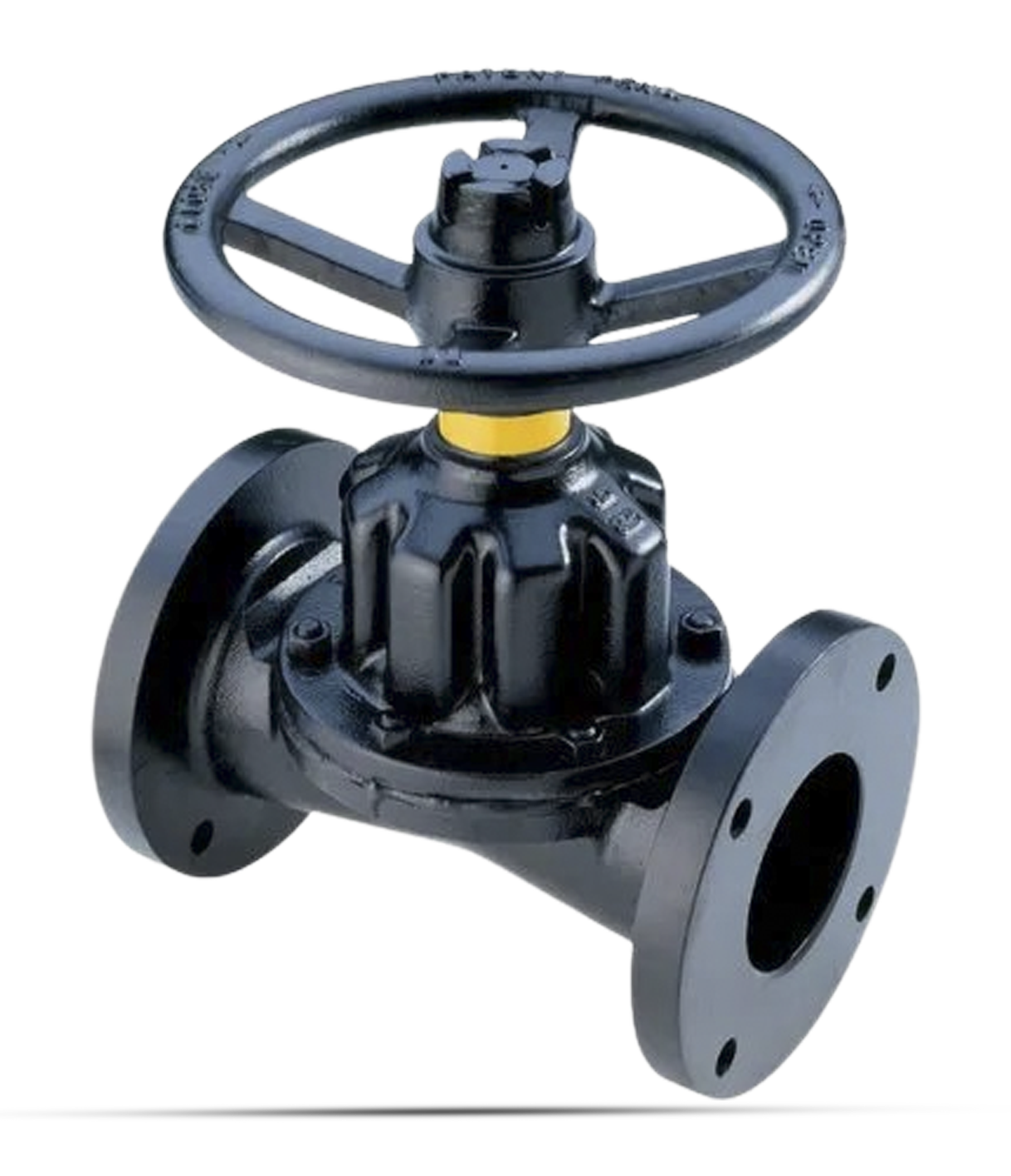

DIAPHRAGM VALVES
- Flange Drilling : ANSI B 16.5 / BS 10 Table / DIN / JIS
- Butt Weld End : ANSI B16.25
- SW Ends: ASME B16.25
- Testing: BS 6755-1
- Pressure -Temperature Rating: ASTM B 16.34
- Design : API 602 / BS 5352 / BS 15761
- End Flang: ASME B16.5 / B16.47 / DIN / BS IS / JIS
- BW End: ASME B16.25
- Socket end standard : ASME B16.11
- Screwed ends : ASME B1.20.1
- Test: API 598 / BS 6755
- Pressure -Temperature Rating : ASTM B 16.34
- Special: NACE MR-01-75

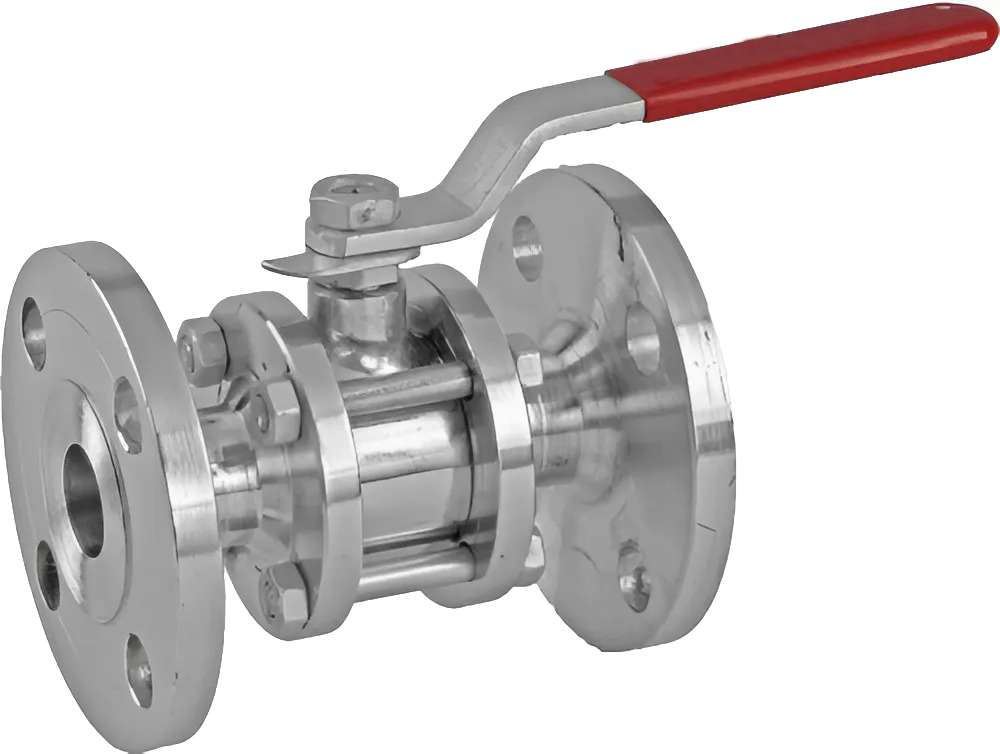

BALL VALVES
( SOFT SEATED & METAL TO METAL SEATED)
- Size: 1/2″-36″(15NB-900NB)
- Class: 150#-2500#
- Type: Floating trunnioun mounted
- Single / Two / Three pieces -CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE
- Trunion / Floating Ball, Full & Reduced Bore
- Anti-Static Device
- Blow-out Proof Stem
- Fire Safe Designed
- Low Emission
- Actucation – Hand Lever / Gear Box / Actuator – Pneumetic, Hydraulic, Electric
- Design : ASME B16.34 / BS 5351 / API 6D /BS 17292
- Face to Face : ASME B16.10 /API 6D
- End to End: BW / Flanged / RTJ
- Pressure -Temperature Rating : ASTM B 16.34
- Screwed End Dimension : ASTM B 1.20.1
- BW End: ASME B16.25
- Test : API 598 / API 6D / BS 6755 / 12266
- Fire Safe : Design Fire Safe API 607 / 6FA
- Special : NACE MR-01-75 / 0103

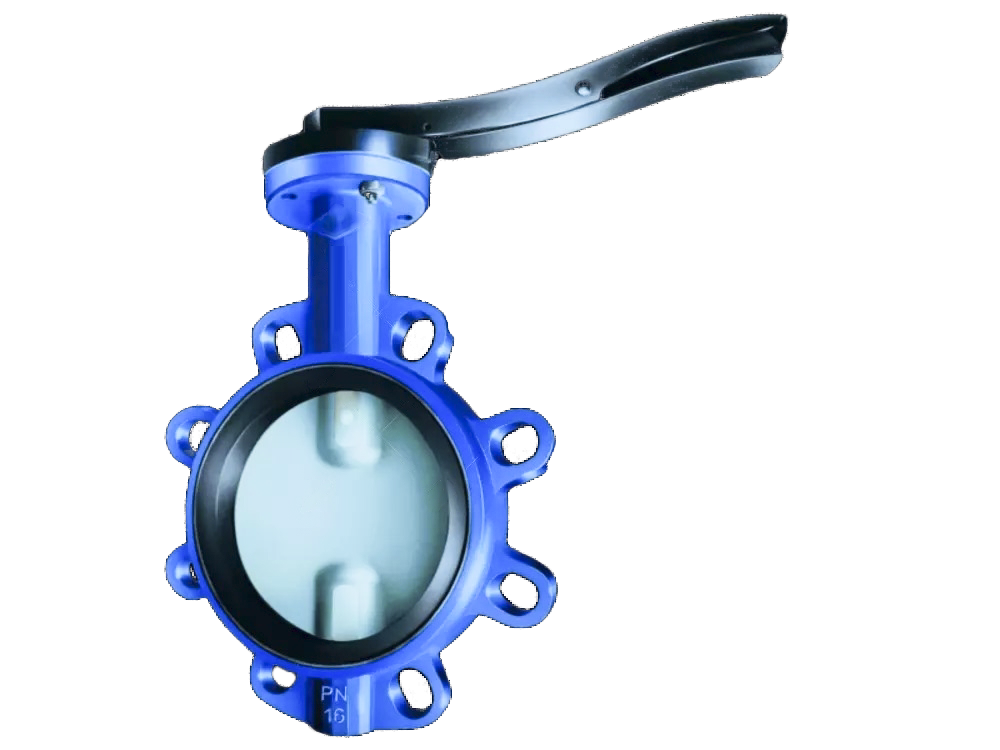

BUTTERFLY VALVES
( SOFT SEATED & METAL SEATED )
- Size: 1″-36″ (15NB – 900NB)
- Type: SOFT SEATED, Metal Seated, Water, Lug, Flanged
- Class: 150#-600#.
PN10, PN16, PN25, PN40 - CS / SS / Alloys / Monel / Hastalloys / Bronze MOC
- Actucation – Hand Lever / Gear Box / Actuator – Pneumetic, Hydraulic, Electrical
- Wafer Type / Lug Type / Flange ends types
- EPDM / Nitrile / PTFE / Rubber Lined & Seated
- Metal to Metal and Metal to soft seat
- Design : API 609 , ANSI B16.34 , BS 5155
- Face to Face : API 609 , BS 5155 , ANSI B16.10
- End to End: Wafer, Lugged, Flanged
- Test : API 598, BS 5155
- Fire Safe : API 607
- Special : NACE MR-01-75 / 0103
- Mounting Flang: ISO5211
- Application : Pneumatic / Electrical HVAC, Water Supply & Sewag, Food & Beverage, Chemical / Petrochemical / Processing, Power and Utilities, Paper and Pulp, Ship Building and steam.
- Speciality : Double Offset / Tripal Offset

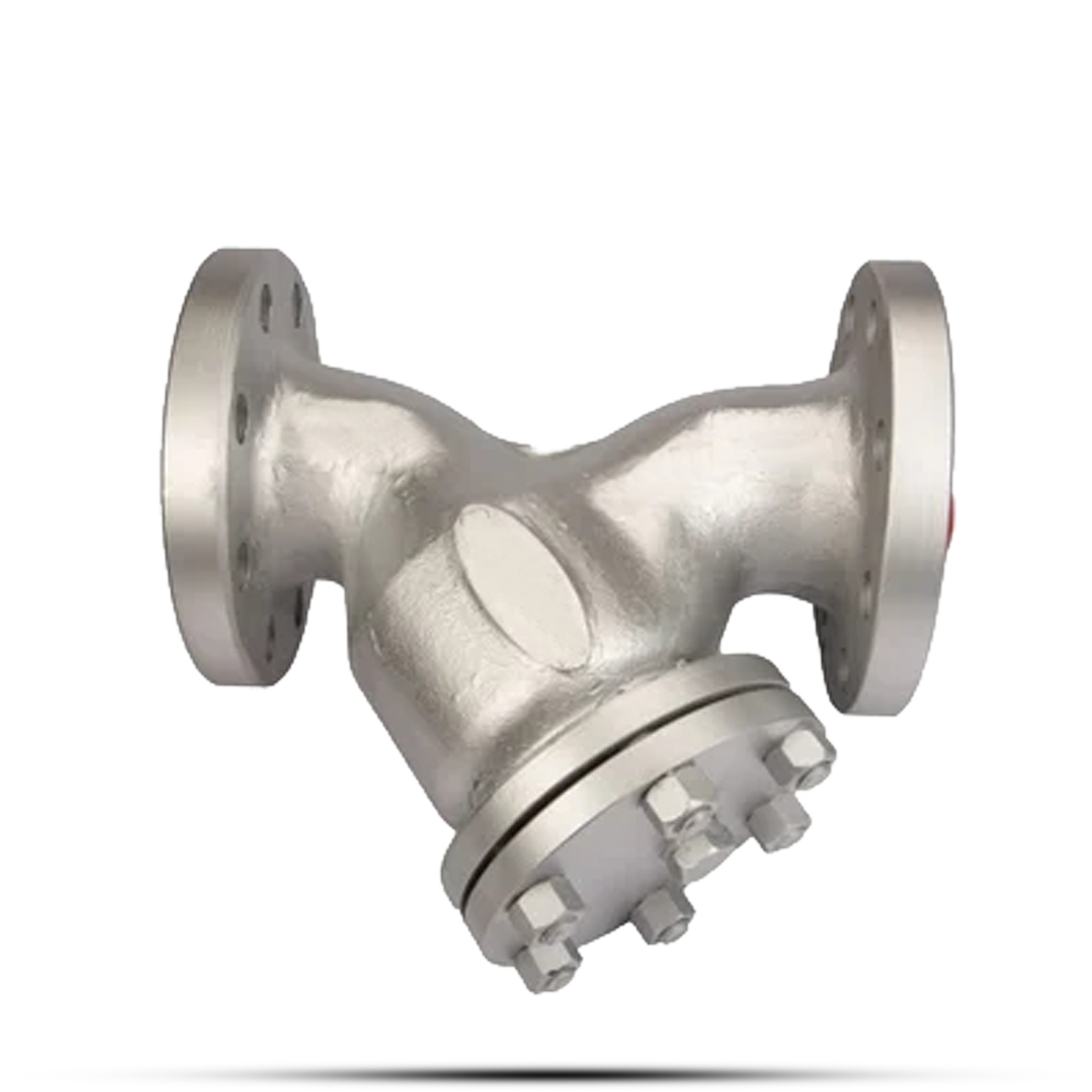

‘Y’ & ‘T’ TYPE STRAINERS
- Size : 1″ to 16″ ( 25mm to 400mm)
- Class :150# – 1500#
- Design Code : BS / DIN / IS
- End Flange : ASME B16.5 / DIN / BS / IS
- Mat of Con : CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE
- Screen / Mesh : SS / Nickel / Inconel / Monel / Bronze
- Design : ASME B16.34 / API 600 / ASTM F 1200-88
- Test : API 598 / BS 6755
- End to End: SW / BW / Flanged / RTJ ends
- BW End : ASME B16.25
- Speciality : NACE MR-01-75
- Flange connection : ANSI B16.5
- Pressure -Temperature Rating : ASTM B 16.34
- Face to face : ANSI B 16.10

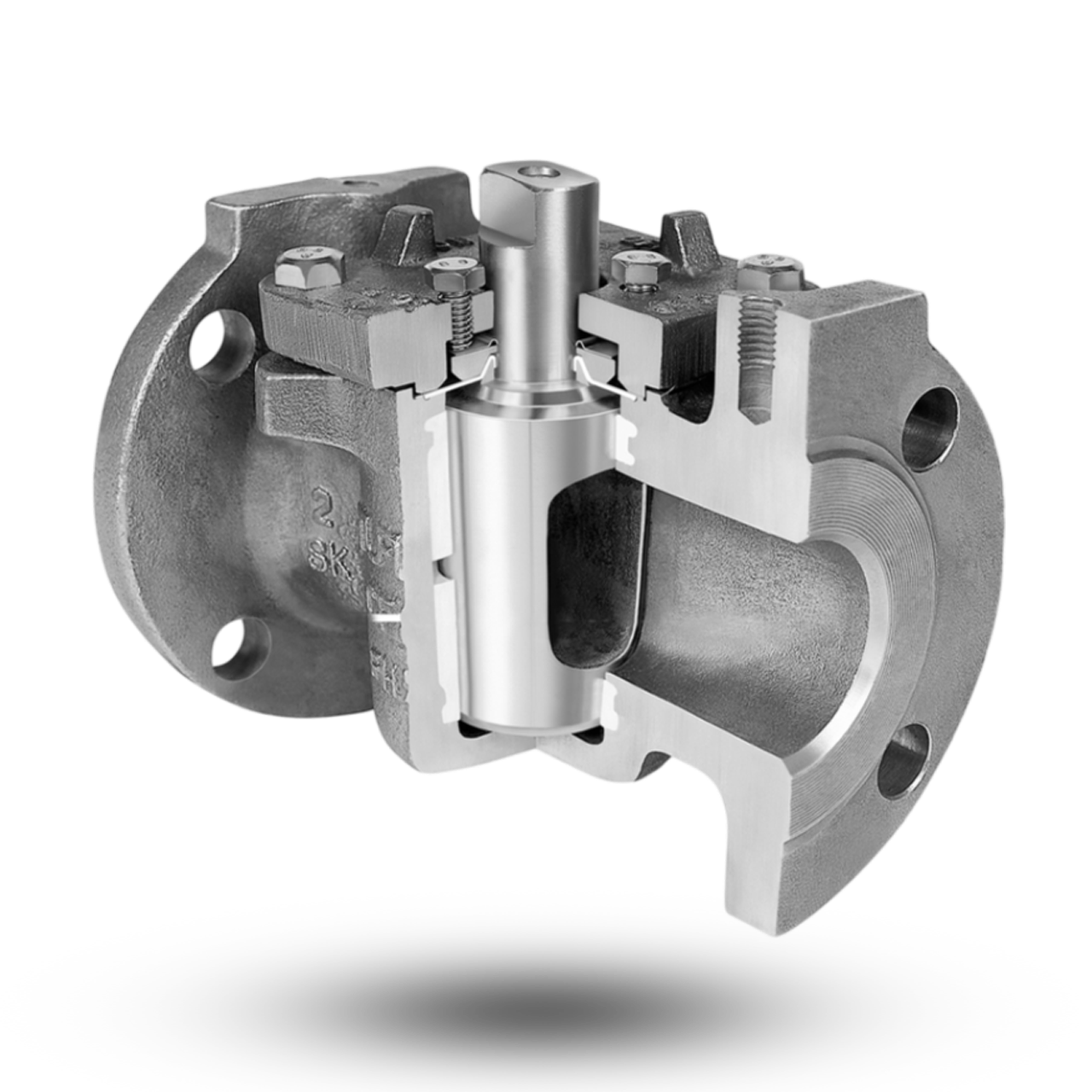

Sleeved Plug Valve
- Size : 1″ to 16″ ( 25mm to 400mm)
- Class :150# – 1500#
- Design Code : BS / DIN / IS
- End Flange : ASME B16.5 / DIN / BS / IS
- Mat of Con : CS / SS / ALLOY STEEL / DSS / NI-ALLOYS / BRONZE
- Screen / Mesh : SS / Nickel / Inconel / Monel / Bronze
- Design : ASME B16.34 / API 600 / ASTM F 1200-88
- Test : API 598 / BS 6755
- End to End: SW / BW / Flanged / RTJ ends
- BW End : ASME B16.25
- Speciality : NACE MR-01-75
- Flange connection : ANSI B16.5
- Pressure -Temperature Rating : ASTM B 16.34
- Face to face : ANSI B 16.10

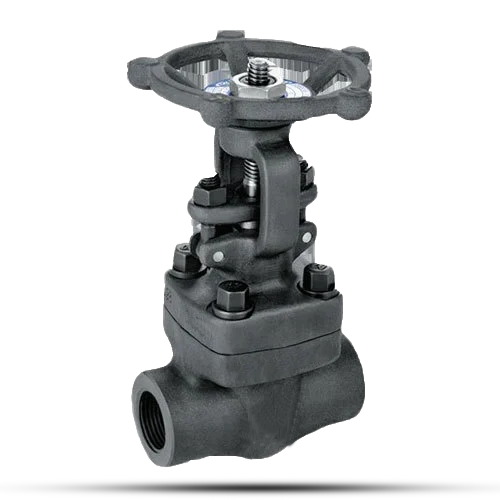

FORGED VALVES
- Size: 1/2″-2″ (15mm – 50mm)
- Types: GATE, GLOBE, LIFT, SWING CHECK
- Class: 150#-2500#
- C S / CI / SS / Alloys / Monel / Hastelloy Steel MOC
- Manual Operated / Pneumatic / Electrical Actuator
- Staight “Y” Type
- Valve Positioner (Smart Principle )
- Metal to Metal and Metal to soft seat
- Speciality : Below Sealed, Cryogenic and Hight Temp.
- Design : API 602 / BS 5352 / BS 15761
- End Flang: ASME B16.5 / B16.47 / DIN / BS IS / JIS
- BW End: ASME B16.25
- Socket end standard : ASME B16.11
- Screwed ends : ASME B1.20.1
- Test: API 598 / BS 6755
- Pressure -Temperature Rating : ASTM B 16.34
- Special: NACE MR-01-75

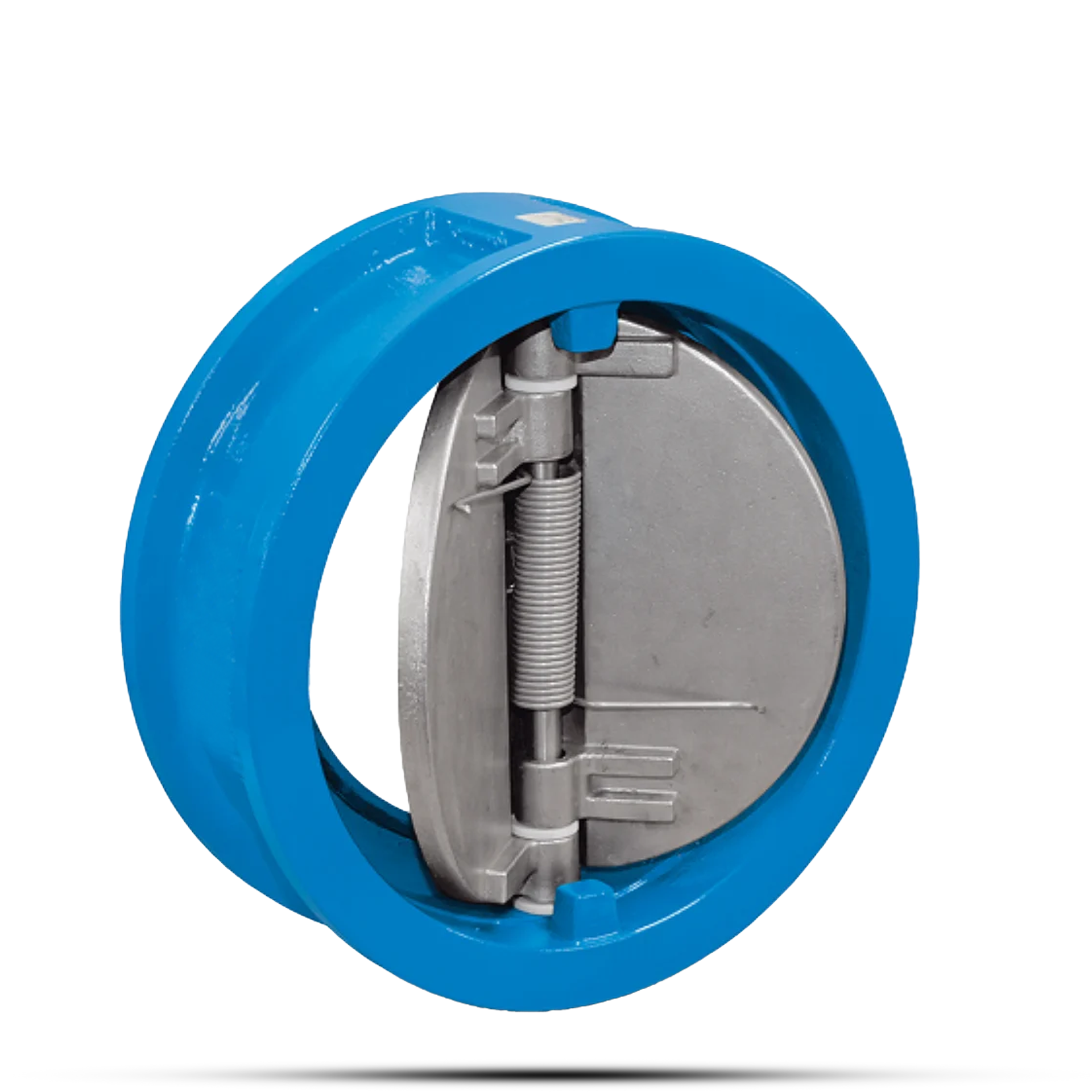

DUAL PLATE CHECK VALVES
( SOFT SEATED & METAL SEATED)
- Size : 1/2″-12″ (15NB -300NB)
- Class : 150#-2500#
- C S / CI / SS / Alloys / Monel / Hastalloys MOC
- Self Operated
- Multi Door
- Spring Loaded / Retainer Less
- Metal to Metal and Metal to Soft seat
- Rubber Lining on request
- Design : API 6D / API 594
- Face to Face : API 6D / API 594
- End to End : Wafer Type / Flanged
- End to End : ASME B16.5 / B16.47 / DIN / BS IS / JIS
- End to End : API 598 / 6D
